Standard Meter
Order Code: CT5-S20
• 20mm domestic water flowmeter.
• for precision data collection.
• 72 pulses/Litre (nominal) Reed Switch pulse output.
• running (non-resetable) mechanical totaliser.
• flowrange @ ± 2% accuracy: 0.5 – 80 Litres/min.
• to 50 °C.
• with connection couplings: Gasket Seat 3/4″ BSP (male)
for QLD & VIC & other States and G1 European thread for international.
Order Code: CT5-S20-BS20
• as above, but with Ball Seat 3/4″ BSP (female) connection couplings
for NSW.
Manifold Version
Order Code: CT5-S20-M Manifold version
• 15/20mm : 122 pulses/Litre
• 20mm: 72 pulses/Litre

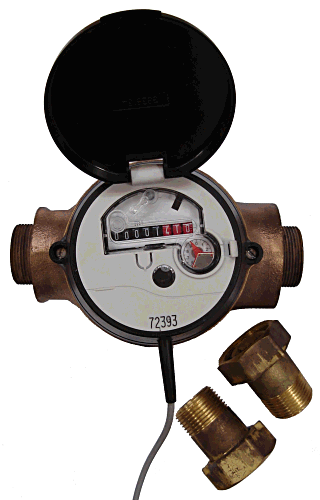

Order Code: CT5-S25 NEW !
• 25mm domestic water flowmeter.
• for precision data collection.
• 36 pulses/Litre (nominal) Reed Switch pulse output.
• running (non-resetable) mechanical totaliser.
• flowrange @ ± 2% accuracy: 0.7 – 116 Litres/min.
• to 50 °C.
• with connection couplings: Gasket Seat 1 ” BSP (male)
for QLD & VIC, and G 1 ¼” European threads.
Order Code: CTS-S25-BS25
• as above, but with Ball Seat 1″ BSP (female) connection couplings
for NSW.
Aegis DataCell R
• Robust logger, for industrial use.
• IP67 enclosure. Waterproof to 1 metre.
• Powered by long-life Lithium battery pack.
• Stores 2 million records. 4 programmable inputs.
• Counts up to 100 pulses per second.
• Delivers information locally and via GSM and GPRS
• SMS and e-mail data collection.
• RTX advanced data logger option IP68 with extra features
OutPost Logger
WASP2-3G-1L. Wireless Outpost Data Logger – WEB PORTAL SYSTEM with GSM Coverage, 10yr bat., IP68
TraceWizard software analyses data logs to find out
where and how water is used.
Water Use Studies:
• Sydney Water Study – Residential water usage (in progress -with OutPost Central Loggers)
• KUWAIT – Med Arabia Ctr – CT5-S25 -Residential Study
• Gold Coast Domestic Water End Use Study
• NZ – Branz – CT5S25 – Water Use in Urban Households
• Yarra Valley Water – Residential End Use Measurement Study
• Gosford City Council – Water Use in Urban Households
• Melbourne Residential Water Use Studies
• Rainwater Tank End Usage and Energy Demand: A Pilot Study
• Abu Dhabi: Residential End Use of Water (REUW) Project
• CSIRO Residential End Use Measurement Guidebook
• CSIRO Practical Challenges in High Intensive Domestic Monitoring
South East Queensland residential end use study
• USA AquaCraft waterstudy
• South East Queensland residential end use study: Baseline results – Winter 2010
aquacraft.com
• SEQ Residential Water End Use Study: Validation Trial of CSIRO End Use Sensor
• Water End Use and Efficiency Project Final Report
• Abu Dhabi: UAE’s first Residential End Use of Water Project
